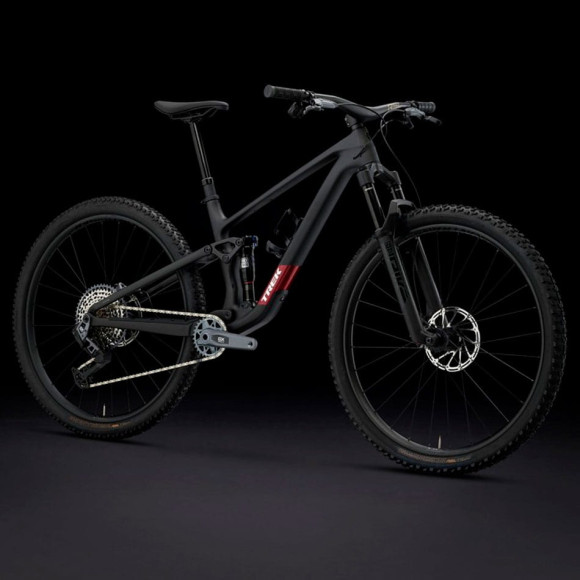

FRAME OCLV Mountain Carbon, internal storage, tapered head tube, internal cable routing, down tube protector, OCLV Next carbon rocker link, Mino 4 Link, ABP, Boost148, 120mm travel
FORK RockShox Pike Select+, DebonAir, Charger 3.1 RC2 shock, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel
RockShox Deluxe Ultimate RCT SHOCK , 185x50mm
WHEELS Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru-axle, 27.5" (Size S); Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru-axle, 29" (Size M, ML, L, XL); Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6 bolts, Boost148, 12 mm thru axle, 27.5"; (Size S); Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6 bolts, Boost148 , 12mm thru axle, 29";(Size M, ML, L, XL)
TIRES Bontrager Gunnisson RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40 (Size S); Bontrager Montrose RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 29x2.40 (Size M, ML, L, XL)
SRAM AXS POD SHIFTER LEVER

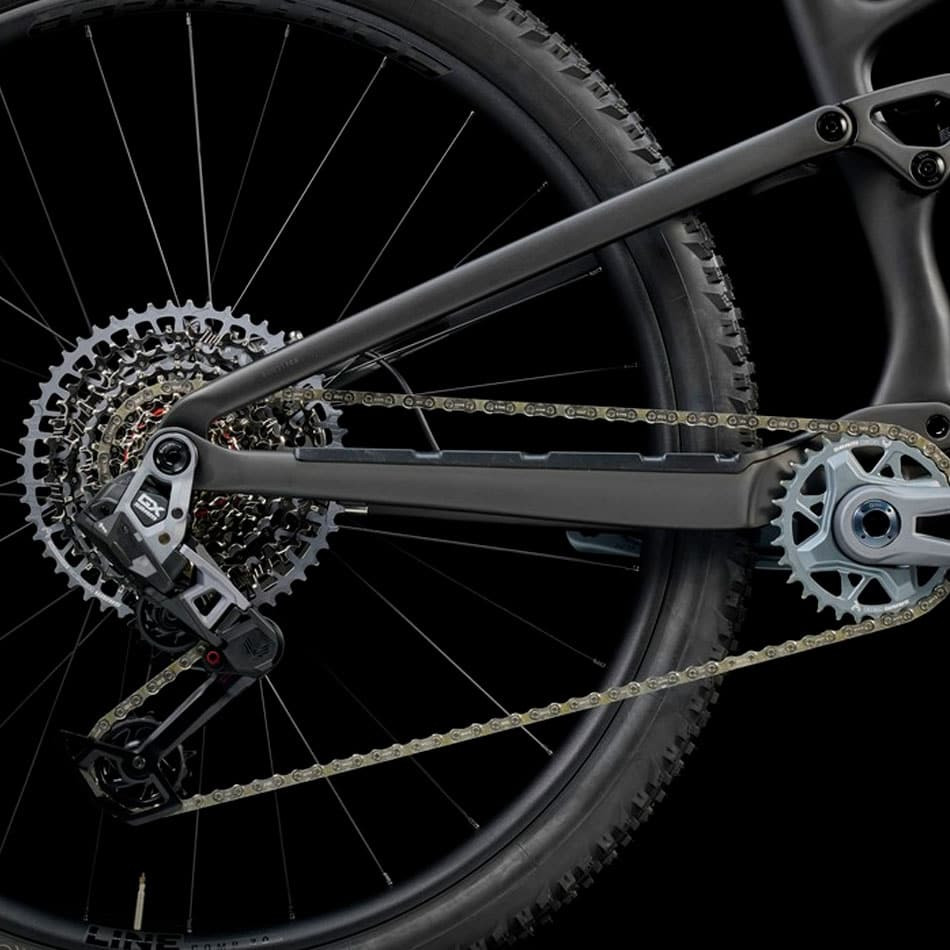

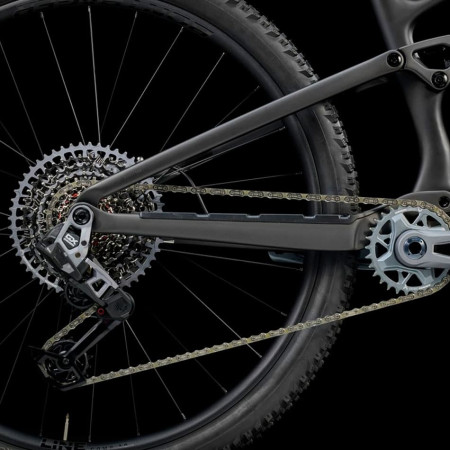

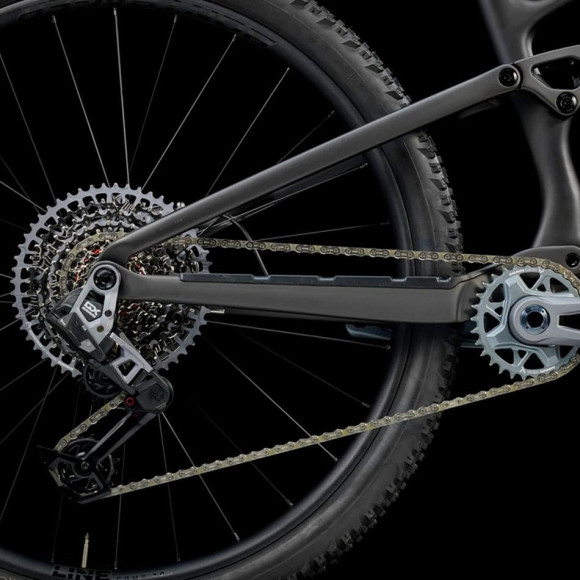

SRAM GX Eagle AXS Derailleur, T-Type
SRAM Eagle XS-1275 CASSETTE , T-Type, 10-52, 12 speed
SRAM GX Eagle CHAIN , T-Type, 12 speeds
SADDLE Verse Short Comp, steel rails, 145 mm width
Bontrager Line Dropper POST , 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length (Size S); Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length (Size M, ML, L, XL)

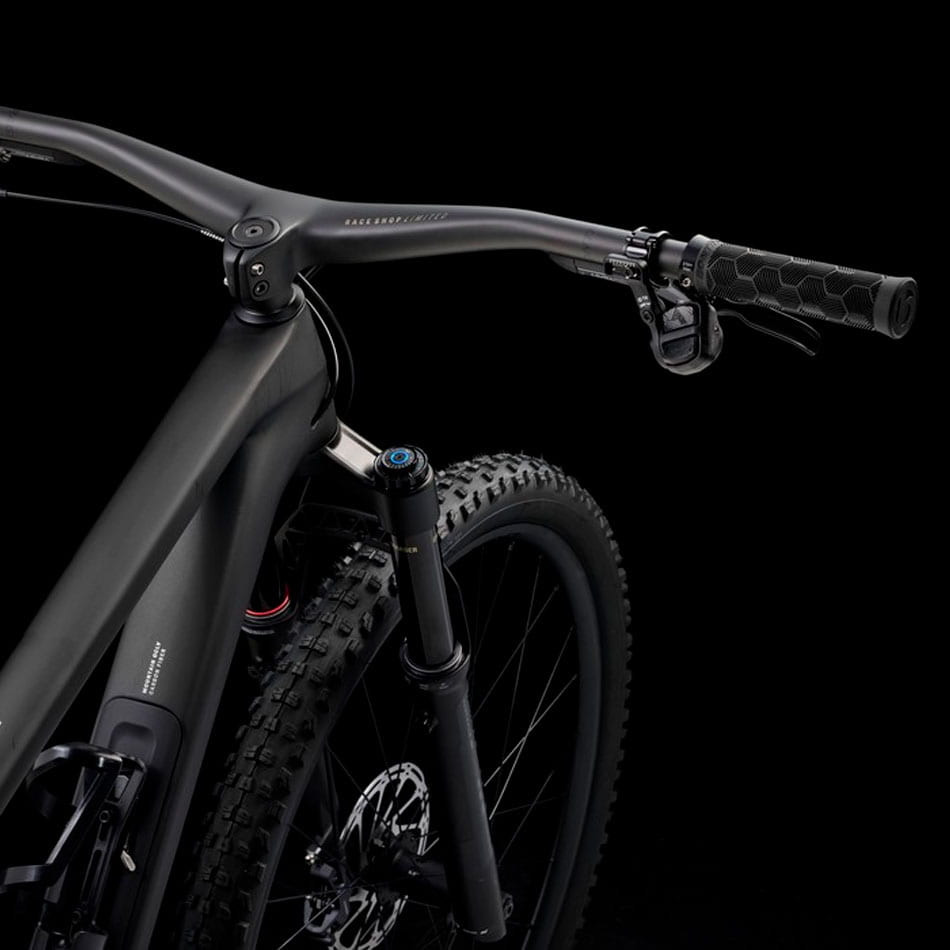

INTEGRATED HANDLEBAR AND STEM Bontrager RSL integrated handlebar and stem system, OCLV carbon, 27.5 mm handlebar height, 820 mm width, 0 degree stem height, 35 mm stem length (Size S); Stem length 45mm (Size M, ML, L, XL)
BRAKES SRAM Level Bonze 4-piston hydraulic disc, SRAM CenterLine 6-bolt brake disc, rounded edge, 180 mm
WEIGHT Size M - 13.10 kg (with TLR sealant, without tubes)
