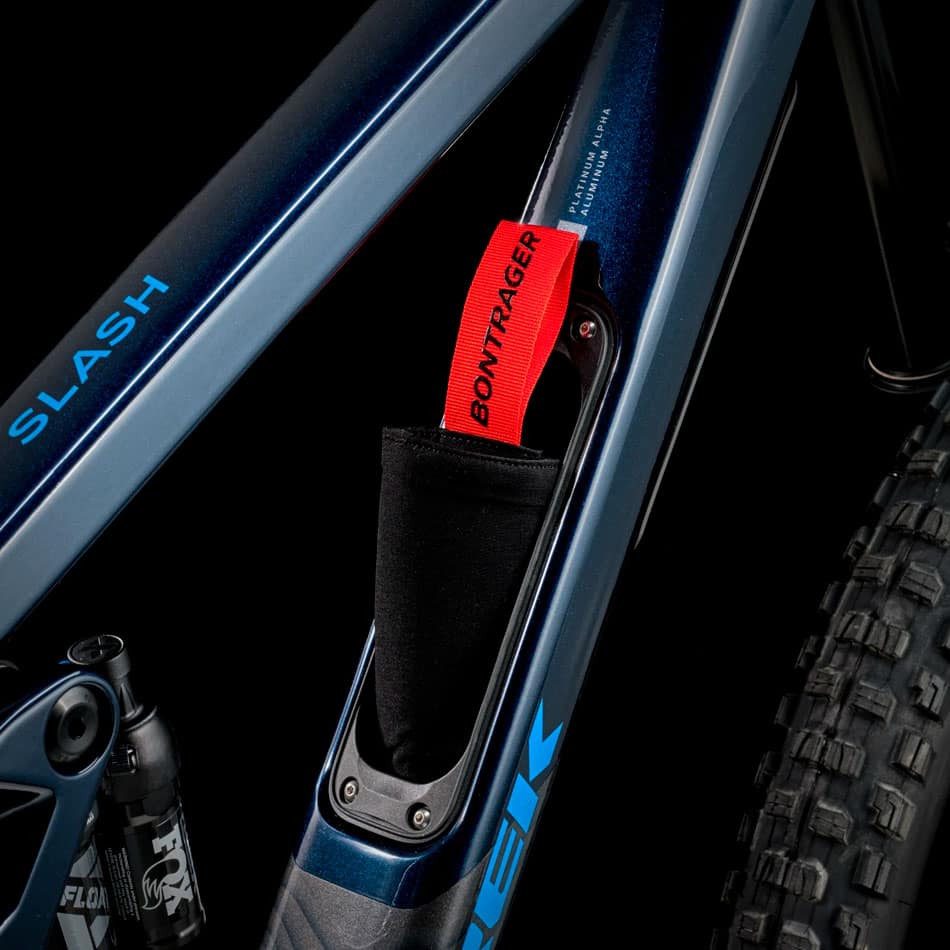

FRAME Alpha Platinum Aluminum, upper main pivot, idler, internal storage, angle-adjustable headset, adjustable progression, integrated frame protection, internal routing, aluminum rocker link, ISCG 05, Active Braking Pivot, 148x12mm thru axle, 170mm travel
FORK Fox Rhythm 36, Float EVOL air chamber, GRIP cartridge, tapered steerer, 44mm offset, Boost110, 15mm Kabolt-X axle, 170mm travel (Size S); Fox Rhythm 36, Float EVOL air chamber, GRIP damping, tapered steerer, 44mm offset, Boost110, 15mm Kabolt-X axle, 170mm travel (Size M, M, L, XL)
SHOCK ABSORBER Fox Performance Float X, 2-position, 230mm x 65mm
Shimano XT M8100 GEAR LEVER , 12 speeds
Shimano XT M8100 REAR DERAILLEUR , long cage

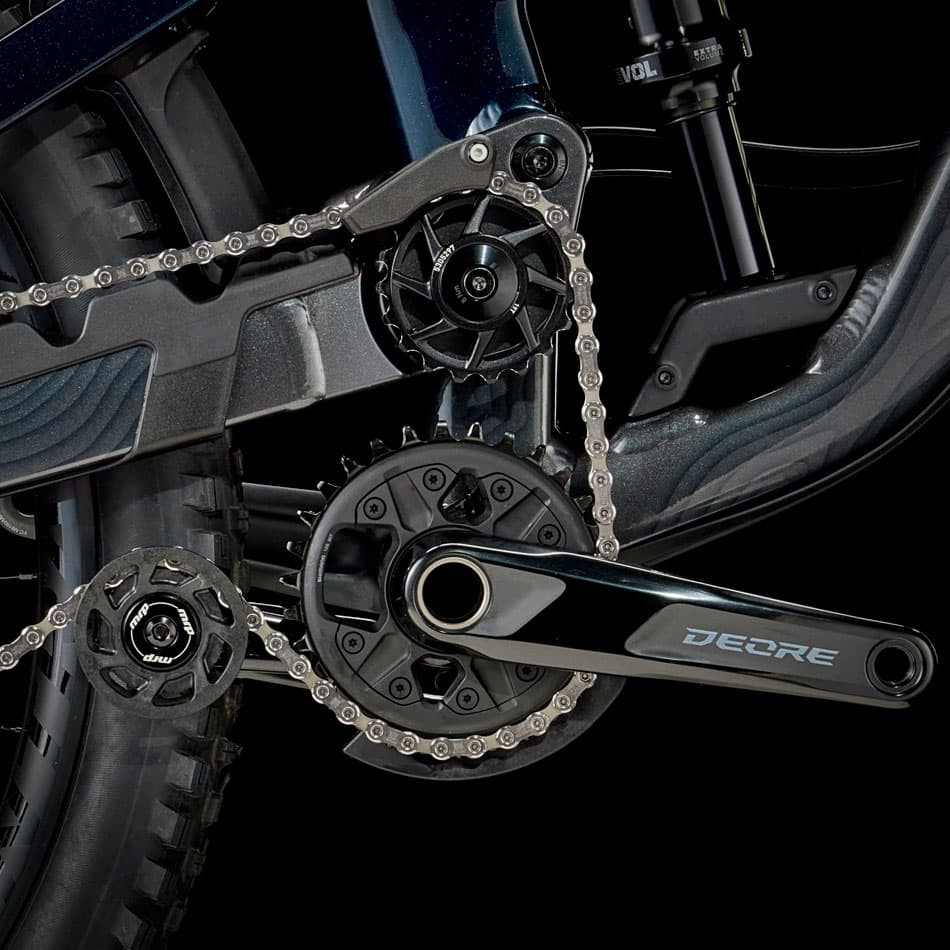

Shimano Deore M6120 BB , 30T chainring, 55mm chainline, 165mm length

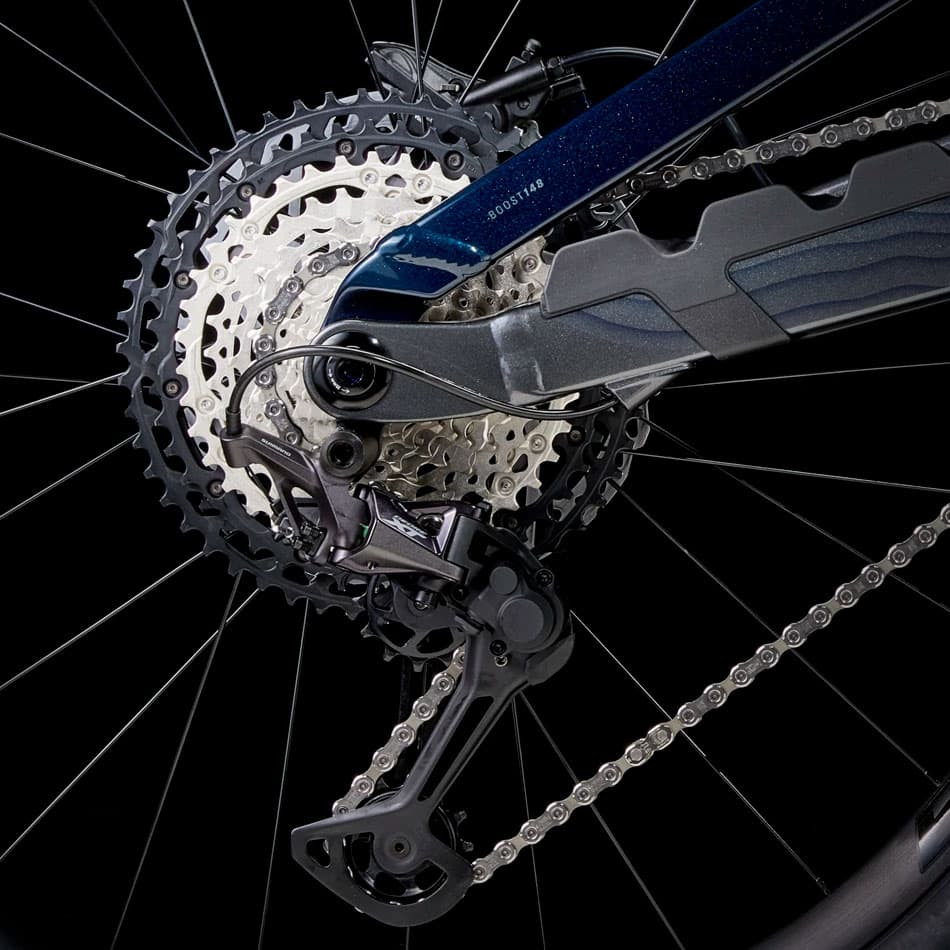

Shimano XT M8100 CASSETTE , 10-51, 12 speeds
CHAIN Shimano SLX M7100, 12 speed
BRAKE Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper; Shimano RT66 rotor, 6-bolt, 203 mm
FRONT WHEEL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5" (Size S); 29" (Size M, ML, L, XL)
REAR WHEEL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5"

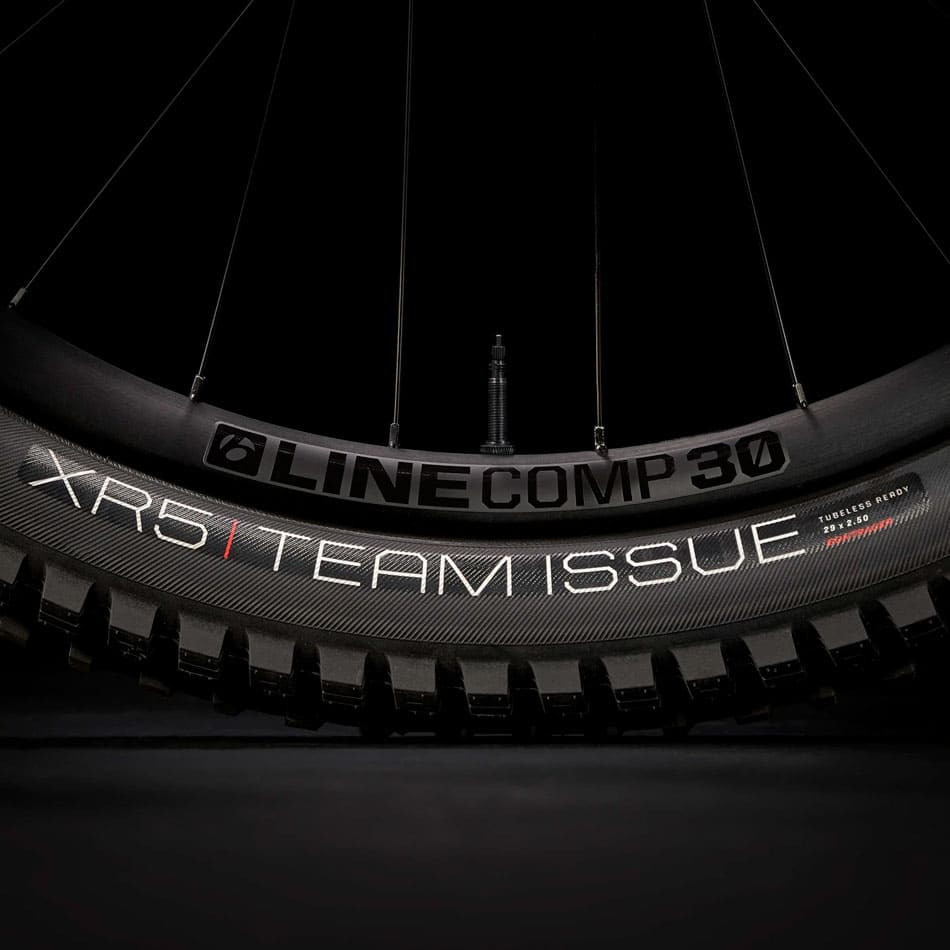

TIRES Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50"
HANDLEBAR Bontrager Line, alloy, 35mm, 27.5mm rise, 820mm width
Bontrager Elite STEM , 35mm, 0-degree, 35mm length
Bontrager Line Dropper seatpost , 100mm travel, MaxFlow, internal routing, 34.9mm travel, 310mm length (Size S); 170mm travel, 450mm length (Size M, ML, L, XL)
SADDLE Bontrager Arvada, hollow chromoly rails, 138mm width
WEIGHT Size M - 16.68 kg (Size M) with TLR sealant, without tubes
