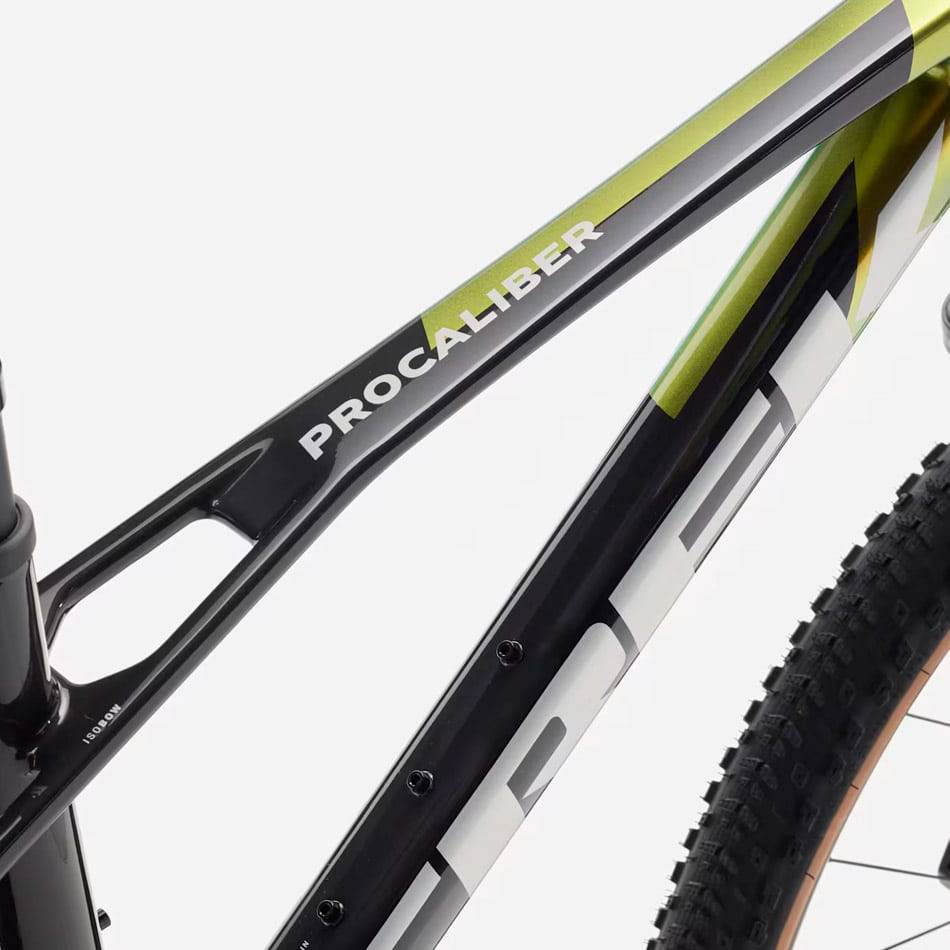

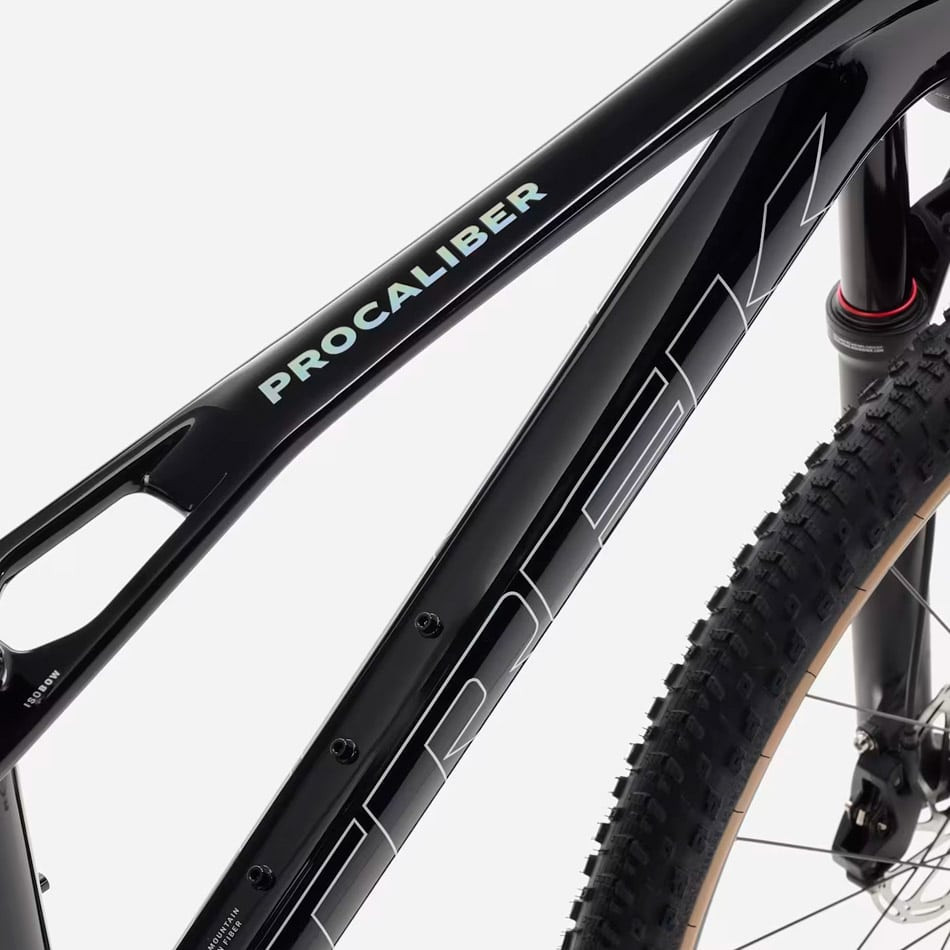

FRAME OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post mount brakes, Boost148

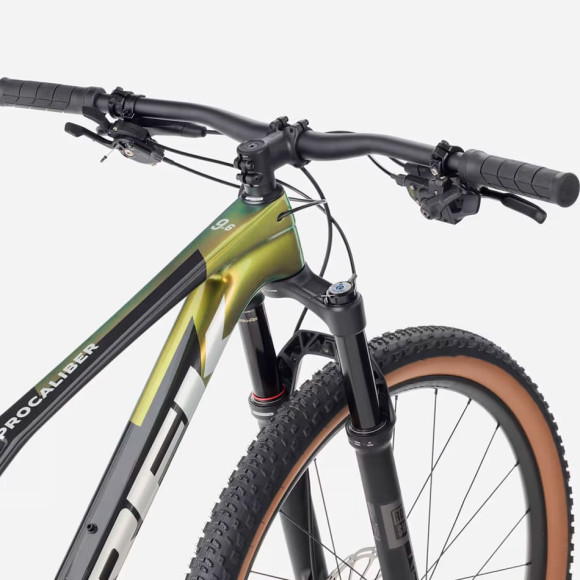

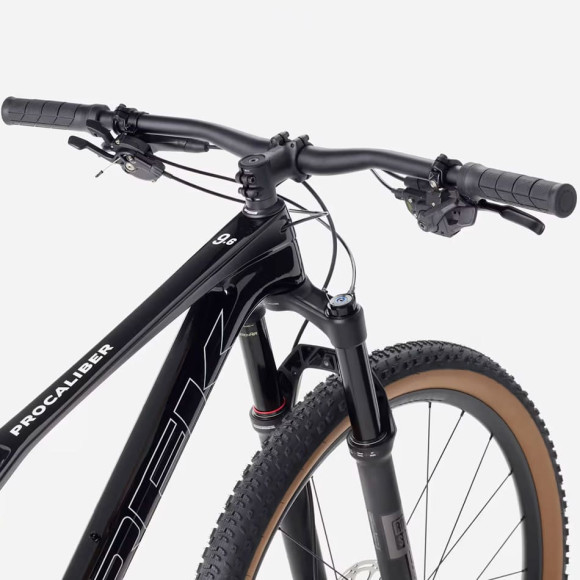

FORK RockShox Reba RL, DebonAir, Motion Control, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
SHOCK Bontrager Drop Lock remote lockout
SRAM Eagle 70 Shifters , 12 speed
SRAM Eagle 70 CRANKSHAFT , T-Type, DUB, 32T, 55mm chainline, 170mm drop (S, M, ML), 175mm drop (L, XL)

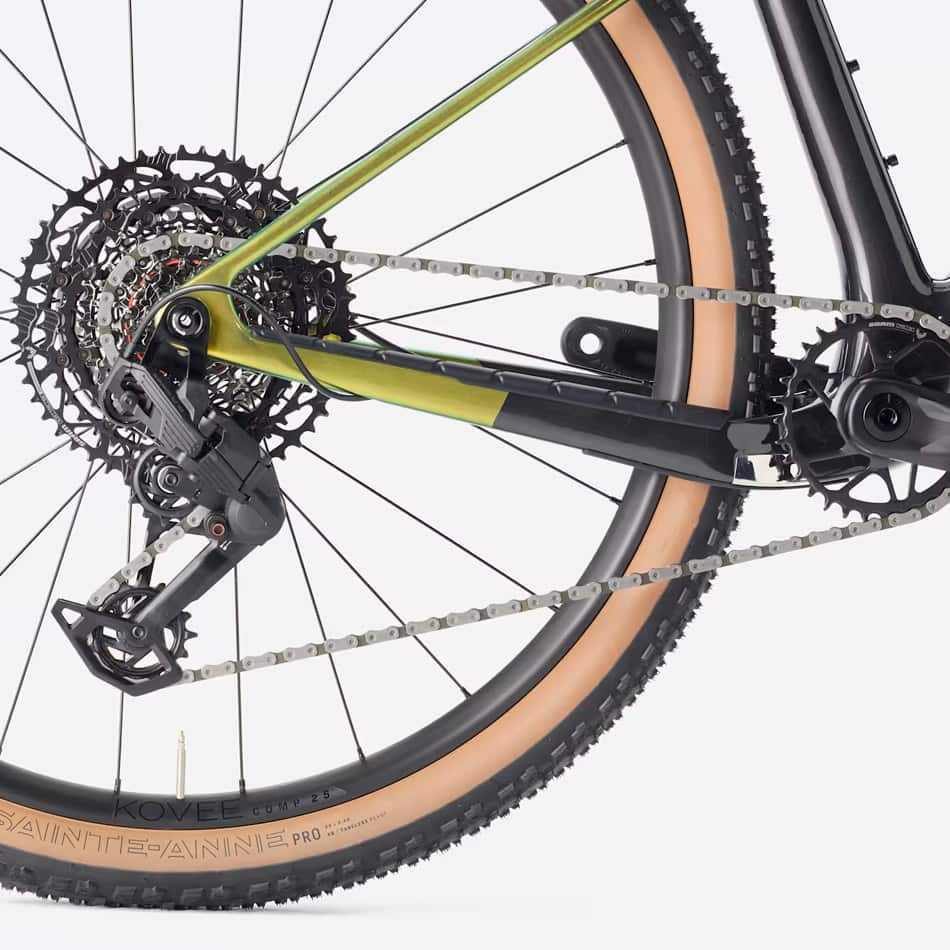

SRAM Eagle 70, T-Type Rear Derailleur
SRAM Eagle 70 Chain , T-Type, 12 Speed
SRAM Eagle XS-1270 CASSETTE , T-Type, 10-52, 12 speed
SRAM CenterLine brakes , 6-bolt, rounded rim, 160 mm
WHEELS Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
TIRES Bontrager Sainte-Anne RSL XTR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
HANDLEBAR Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width (size S); Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width (sizes M, ML, L, XL)
STEM Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 50mm stem (S); Bontrager Elite, 31.8mm, Blendr compatible, 7-degree, 60mm stem (M, ML), 70mm stem (L), 80mm stem (XL)
Bontrager Line Dropper seatpost , 100mm travel, 310mm length (S); 150mm travel, 410mm length (M, ML, L); 170mm travel, 450mm length (XL)
SADDLE Verse Short Comp, steel rails, 145mm width
APPROXIMATE WEIGHT M - 11.83 kg / 26.09 lbs (with TLR sealant, tubeless)
