FRAME Carbon HMF Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline Range Extender Ready
FOX 36 Float Factory Grip 2 Air FORK / Kashima HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle 44mm offset / tapered steerer 160mm travel

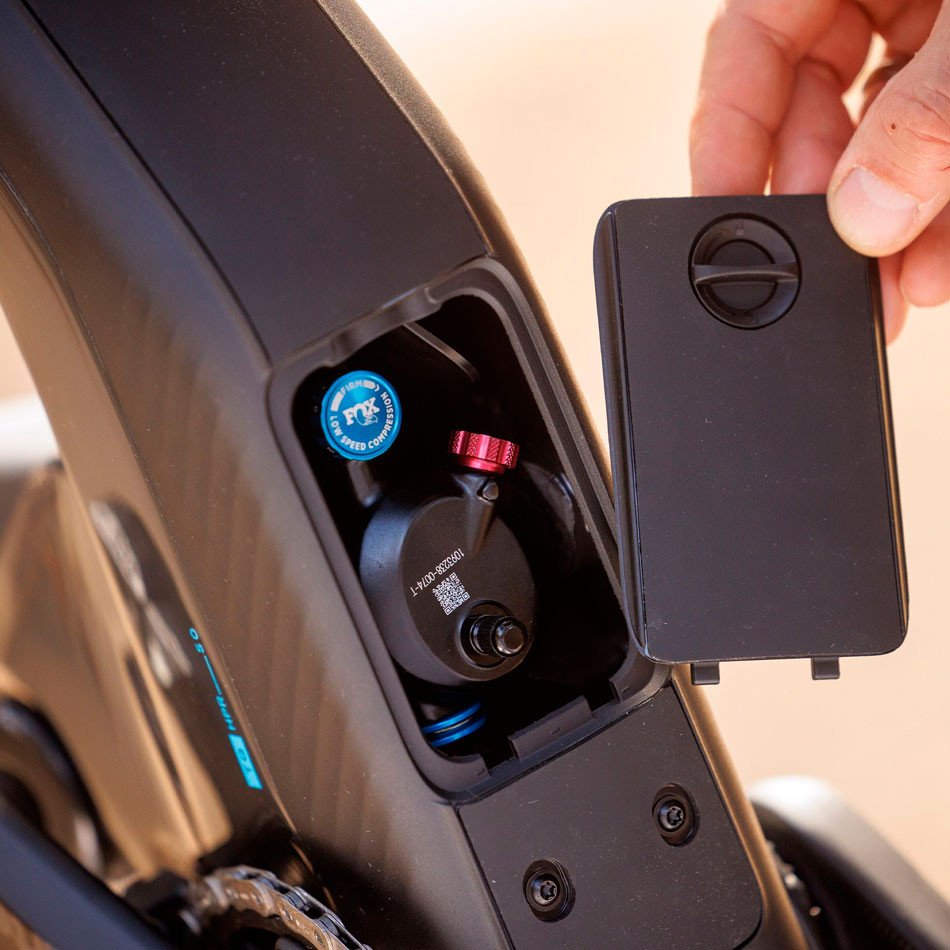

FOX FLOAT X NUDE SHOCK Factory EVOL Piggy Back Trunnion Kashima / SCOTT custom w. travel / geo adj. 3 modes: Climb-Ramp Control-Descend Custom large Air volume / Comp & Reb. Adj. Travel 155-100-Climb / T185X55mm
REMOTE SYSTEM TracLoc Technology Rear Suspension Dropper Remote 3 Rear Suspension modes
SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
SRAM GX Eagle AXS Rocker Controller LEVERS
CRANKS e*thirteen / e*spec Race Carbon / 34T
CHAIN GUIDE e*thirteen / e*spec Slider
PLATE Scott custom spider / SRAM Eagle Transmission 34T chainring
SRAM CN GX Eagle Transmission CHAIN
SRAM GX Eagle XS 1275 Transmission 10-52 CASSETTE
BRAKES SRAM Code Silver Stealth 4-Piston Disc, SRAM HS2 Rotors F, R 200mm brake disc
HANDLEBAR Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm Syncros Endurance lock-on grips
SEATPOST Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm
SADDLE Syncros Tofino 1.5 Regular Titanium rails
WHEELS Syncros Revelstoke 1.0-30 CL F: 15x110mm R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss Ratchet Hubs / XD Driver SRAM TyreWiz / Syncros Axle w/Removable Lever with 6mm Allen T30 and T25 Tools
TIRES Maxxis Assegai / 2.6" / 60TPI Foldable Tubeless Ready / EXO+ 3C maxx Terra
MOTOR TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
TQ Internal 360 Wh Battery

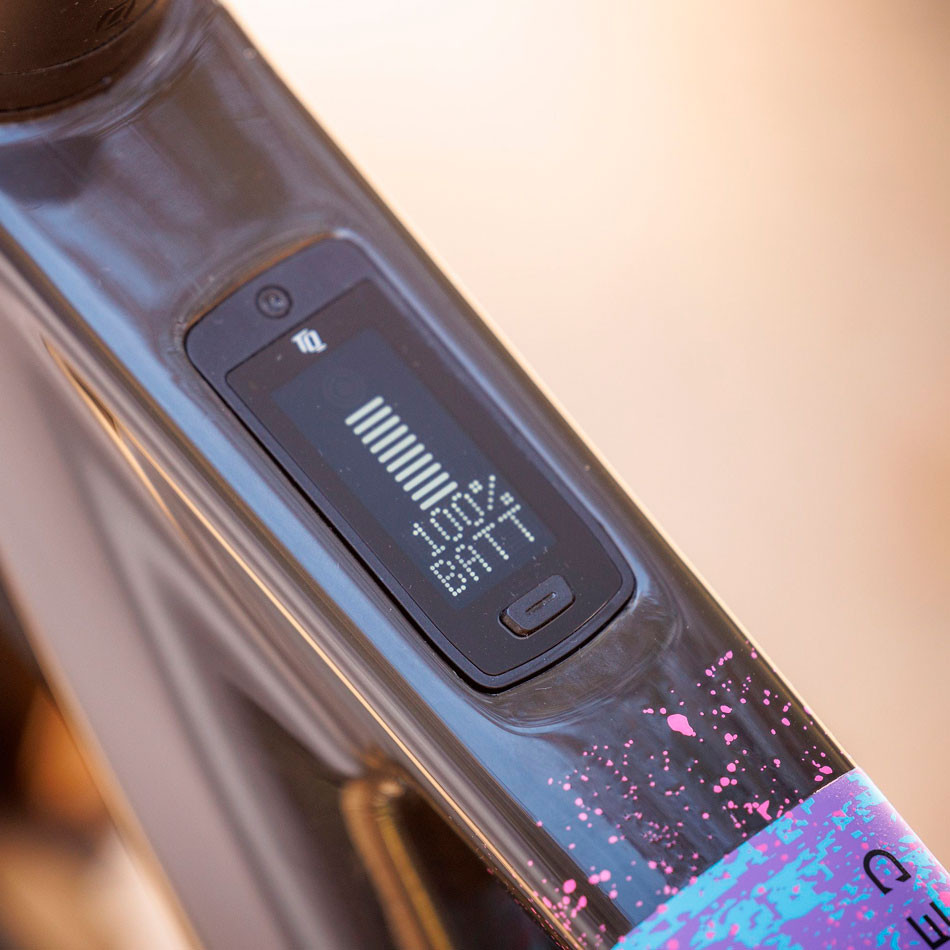

TQ HPR DISPLAY Bluetooth / ANT+ / Dedicated Smartphone app
TQ CHARGER 100-240V-4A
NOTICE:
Some components may change from the manufacturer without prior notice
