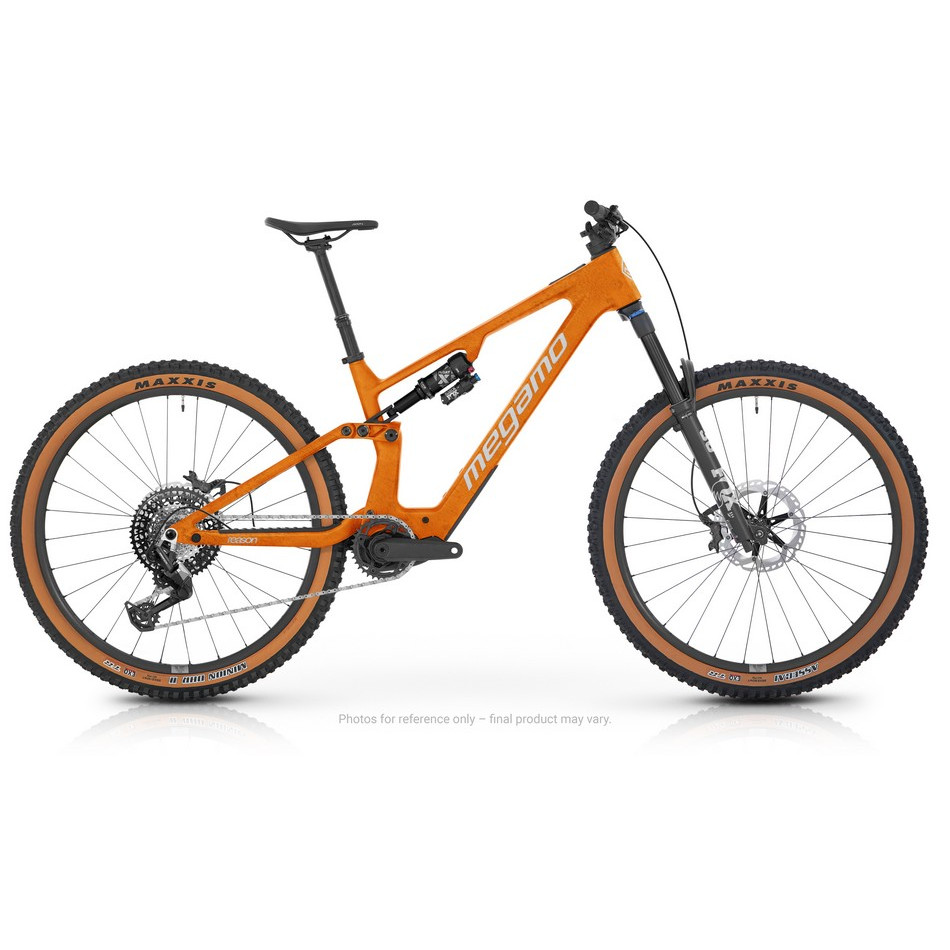

FRAME Reason Full Carbon, alloy shock extension, fully integrated battery, Megamo ASP, Boost 12x148, 160mm wheel travel; Orange
FORK Fox 36 Performance, 160 mm, Grip, 3 positions, 44 mm rake
SHOCK Fox Float X Performance, 210x55 mm, 2 positions
SHIFTERS Sram Eagle 90 Transmission Shifter, 12 speed
CRANKS AND CHAINRINGS 34T BCD 104mm bolt-on chainring, 165mm Forged AL6061/T6 crankset, black anodized
Sram Eagle 90 T-Type 12-speed shifter
Unspecified CHAIN
Sram XS-1275 Eagle CASSETTE , 10-52T
BRAKES Shimano XT BR-M8220, 4-piston hydraulic disc, 203 mm discs front and rear
DJI Avinox M1 MOTOR , 120 Nm 1000W (Boost mode), 105 Nm 850W, 5 assist modes, 150 rpm
DJI Avinox BATTERY 800 Wh, 35.9 V, IP56
DJI Avinox DP100 Display , 2" OLED Touchscreen, 800 nits, 326 ppi
TIRES Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
HANDLEBAR Megamo Alloy Butted, 35 x 800 mm, Rise 12 mm, Back Sweep 6°
Satori New Ursa STEM , 35mm
Megamo 31.6mm dropper post , size S: 125mm, size M: 150mm, size L: 170mm
SADDLE Fizik Terra Aidon X5 WEIGHT
21.2 kg
NOTICE:
Some components may change from the manufacturer without prior notice
