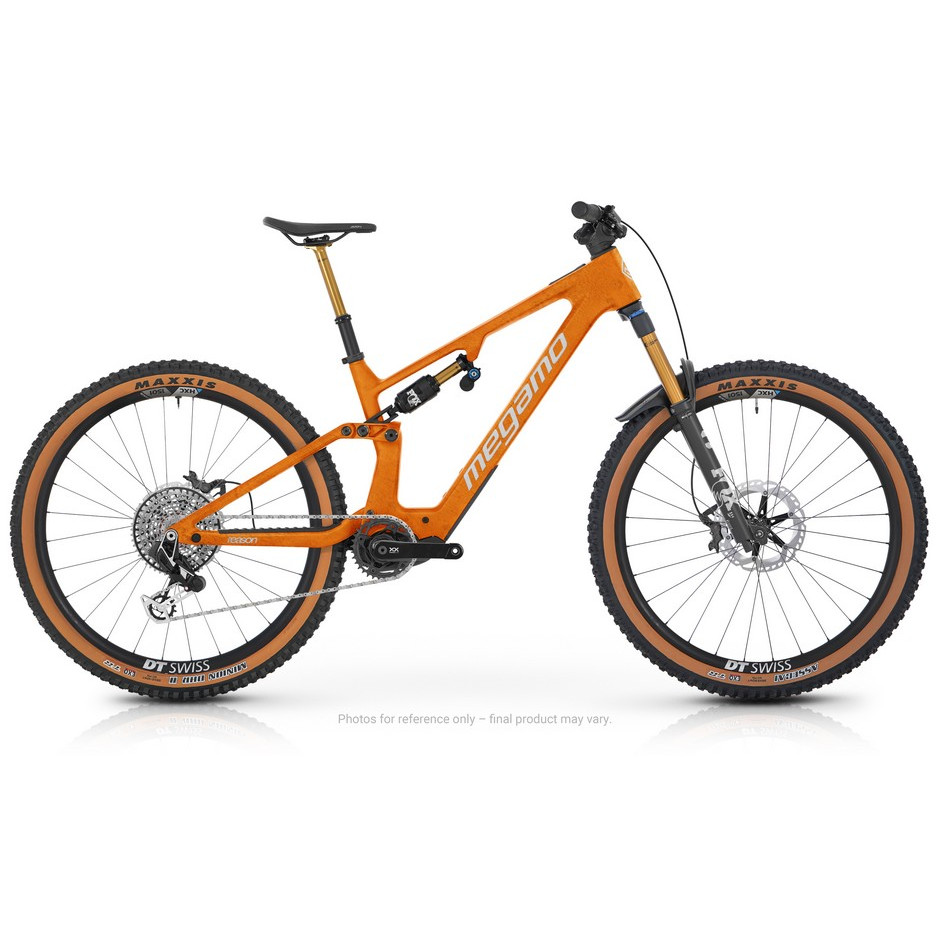

FRAME Reason Full Carbon, alloy shock extension, fully integrated battery, Megamo ASP, Boost 12x148, 160mm wheel travel; Orange
FORK Fox 36 Factory Kashima, Float, 29", 160 mm, Grip X2, rake 44 mm
Fox Float X2 Factory SHOCK , 210x55 mm, Evol Transverse Reservoir, 2 positions
SHIFT CONTROLS Sram XX AXS controller
CRANKS AND CHAINRINGS 34T BCD 104mm bolt-on chainring, 165mm Forged AL6061/T6 crankset, black anodized
Sram XX Eagle AXS T-Type 12-speed Derailleur
Unspecified CHAIN
Sram XX Eagle T-Type CASSETTE , 10-52T
BRAKES Shimano XT BR-M8220, 4-piston hydraulic disc, 203 mm discs front and rear
DJI Avinox M1 MOTOR , 120 Nm 1000W (Boost mode), 105 Nm 850W, 5 assist modes, 150 rpm
DJI Avinox BATTERY 800 Wh, 35.9 V, IP56
DJI Avinox DP100 Display , 2" OLED Touchscreen, 800 nits, 326 ppi
DT Swiss 1501 HXC 30 Carbon, Tubeless Ready WHEELS
TIRES Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
HANDLEBAR Carbon Race Face ERA, 35 x 800 mm, Rise 20 mm
Satori New Ursa STEM , 35mm
Fox Transfer Kashima seatpost , 31.6 mm, dropper, size S: 125 mm, size M: 150 mm, size L: 175 mm
SADDLE Fizik Terra Aidon X5
WEIGHT 20.3 kg
NOTICE:
Some components may change from the manufacturer without prior notice
