FRAME OCLV Mountain Carbon main frame , Removable Integrated Battery (RIB 2.0), Tapered head tube, Internal cables, Motor Armor motor guard, Angle-adjustable headset, Adjustable Mino Link Geometry, Adjustable lever ratio, 34.9mm seatpost, ABP, UDH, Boost148, 12mm thru axle, 160mm travel
FORK RockShox ZEB Ultimate, DebonAir, Charger 3.1 RC2, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
RockShox Super Deluxe Ultimate RC2T SHOCK , 205x65 mm
SRAM AXS pod shifters
SRAM X0 Eagle crankset , 160mm drop, SRAM T-Type, 34T, steel
SRAM X0 Eagle AXS Derailleur , T-Type
SRAM X0 Eagle Chain , T-Type, 12 Speed
SRAM Eagle XS-1295 CASSETTE , T-Type, 10-52, 12 speed
BRAKES SRAM Code Silver 4-piston hydraulic disc / SRAM Maven Silver 4-piston

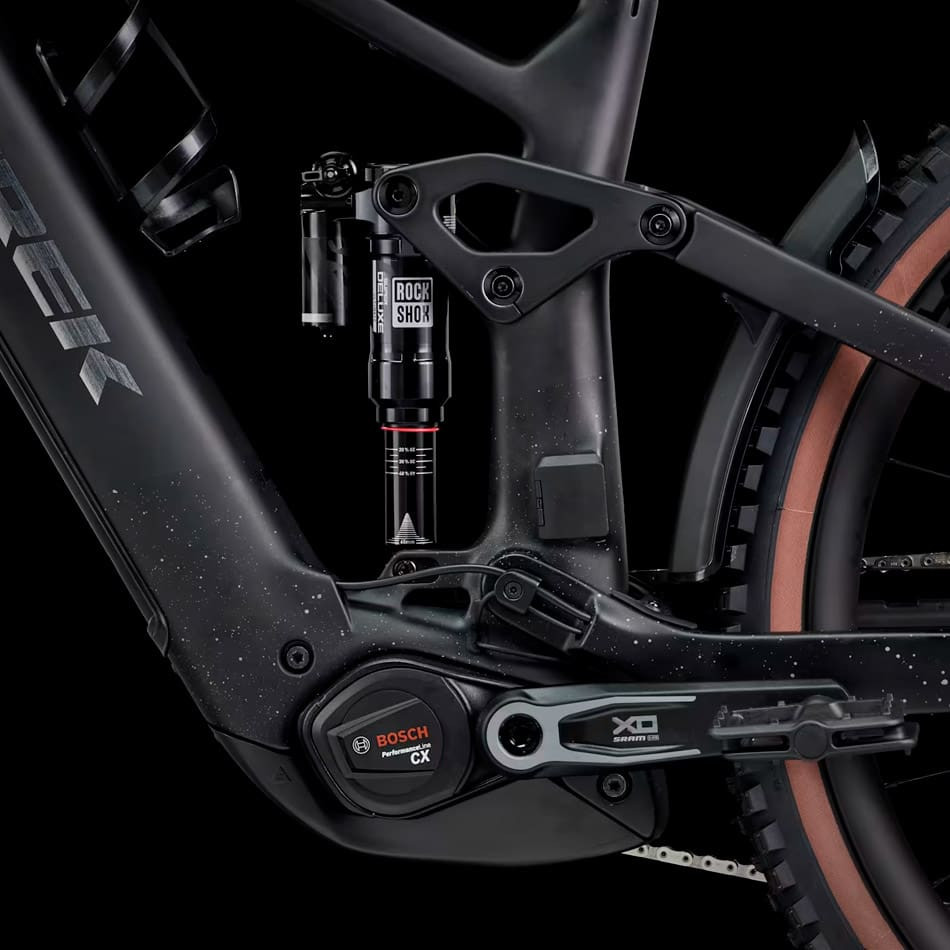

Bosch Performance Line CX Gen 5 ENGINE
BATTERY Size: S, M, L, XL Bosch PowerTube 800 Wh
DISPLAY Bosch System Controller BRC3100
Bosch standard charger 4A, 230 V
FRONT WHEEL Size: S Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru-axle, 27.5" / Size: M, L, XL Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru-axle, 29"
REAR WHEEL Size: S, M, L, XL Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 27.5"
TIRES Size: S, M, L, XL Bontrager Brevard RSL SE, Tubeless Ready, Triple Compound, Aramid Bead, 60 tpi, 27.5x2.50 / Size: M, L, XL Bontrager Brevard RSL SE, Tubeless Ready, Triple Compound, Aramid Bead, 60 tpi, 29x2.50
HANDLEBAR Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Bontrager Line Pro Stem , 35mm, Blendr Compatible, 0 Degree, 45mm Stem Length
POSTPOST Size: S RockShox Reverb AXS, 100 mm or 150 mm travel, wireless, 34.9 mm, length 340 mm or 442 mm / Size: M RockShox Reverb AXS, 170 mm or 175 mm travel, wireless, 34.9 mm, length 480 mm or 492 mm / Size: L, XL RockShox Reverb AXS, 170mm or 200mm travel, wireless, 34.9mm, 480mm or 542mm length
SADDLE Verse Short Comp, steel rails, 145mm width
FENDERS Trek 27.5" custom fenders
APPROXIMATE WEIGHT M - 23.98 kg / 52.87 lbs (with TLR sealant, tubeless)
