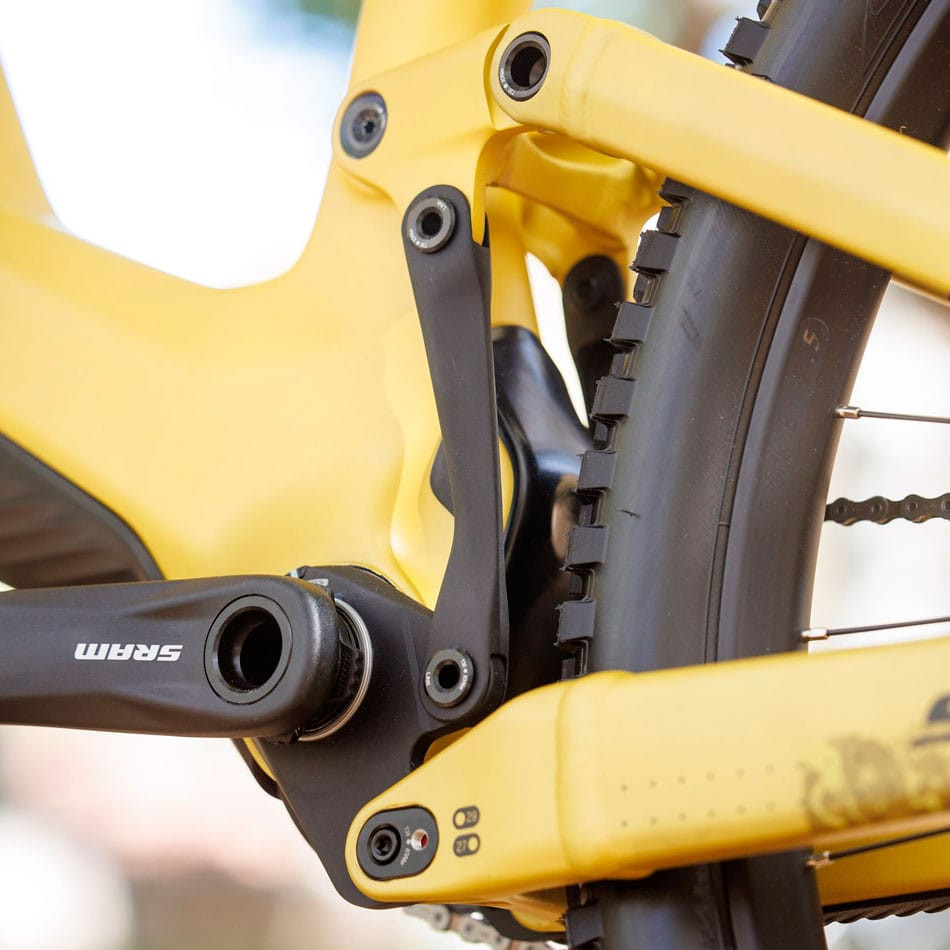

FRAME Ransom Carbon HMF Mainframe with Alloy 6061 Swingarm Integrated Suspension Technology 6 Link kinematic / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline / MX Ready

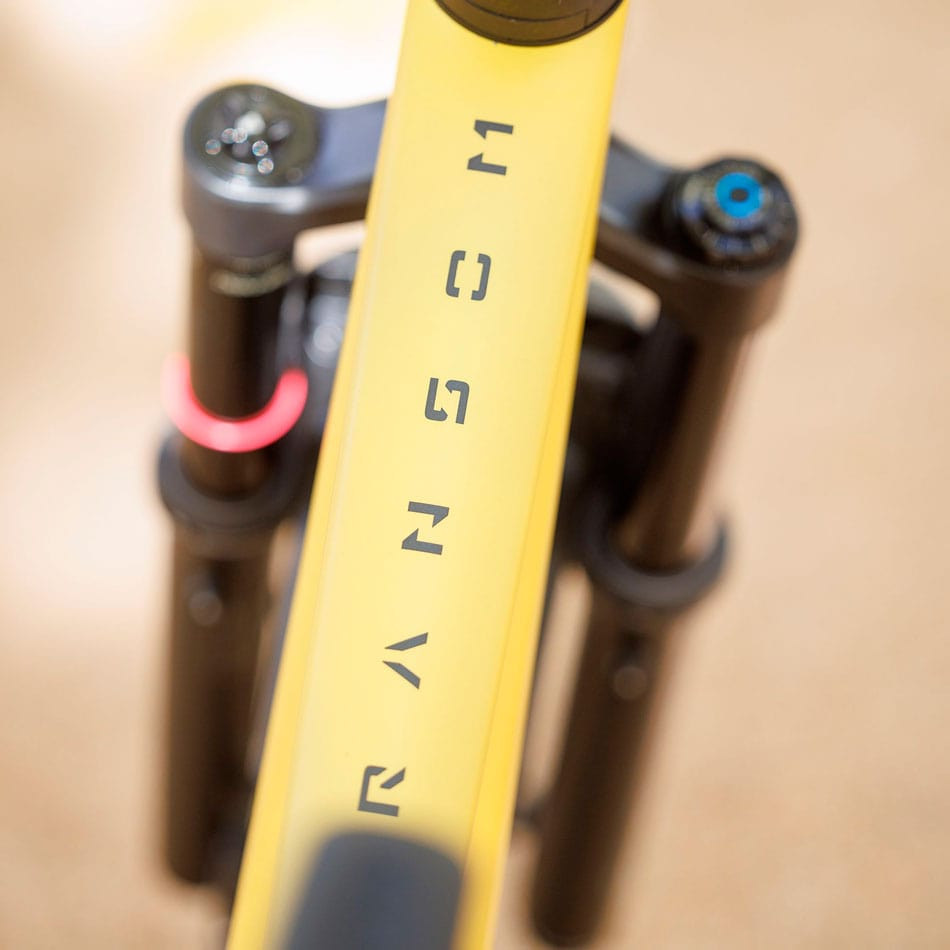

FORK RockShox Zeb Select+ Charger 3 HSC - LSC - LSR adjustable / 15x110mm Maxle stealth axle 42mm offset / Tapered Steerer 170mm travel
FOX FLOAT X NUDE EVOL SHOCK ABSORBER Piggy Back Trunnion / SCOTT custom w. travel / geo adj. 3 modes: Climb-Ramp Control-Descend Custom large Air volume / Comp; Reb. Adj. Travel 170-130-Climb / T205X65mm / Bearing Hardware
REMOTE SYSTEM TracLoc Technology Rear Suspension; Dropper Remote 3 Rear Suspension modes
SRAM NX Eagle 12 Speed Shifter
SRAM SX Eagle Trigger Shifters
CRANKS SRAM X1 1000 Eagle DUB Boost 32T / Chainline 55mm
SRAM CN SX Eagle Chain
SRAM NX CASSETTE / PG1210 / 11-50 T
HANDLEBAR Syncros Hixon 2.0 Alloy 6061 DB Size S; M 12mm Rise / Size L; XL 20mm Rise / back sweep 8° / 780mm Syncros Endurance lock-on grips
POWER Syncros AM 2.0 Syncros Cable Integration System 4° rise / 6061 Alloy / 31.8mm / 40mm
SRAM DB8 4 Piston Disc BRAKES ; SRAM Centerline Rotors F brake disc; R 200mm
SEATPOST Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L; XL size 210mm
SADDLE Syncros Tofino 2.0 Crmo Rails
WHEELS Syncros Revelstoke 2.5 6 Bolt F: 15x110mm R: 12x148mm Boost 30mm Tubeless ready rim 28Hr Syncros Axle w/Removable Lever with Tool
TIRES F: Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp; R: Maxxis Dissector / 2.4" / 120TPI Foldable / DD/ TR / 3C Maxx Terra
APPROXIMATE WEIGHT 16.4 kg
NOTICE:
Some components may change from the manufacturer without prior notice
